Toyota Tacoma Shortbed (16-23) Bolt on Rock Slider Frame Plate Kit

FREE USA SHIPPING!

3-5 DAY LEAD TIME to process new orders

*Local pickup available by appointment. Contact us after placing your order

Compatible with 2016-2023 Toyota Tacoma Double Cab Short Bed

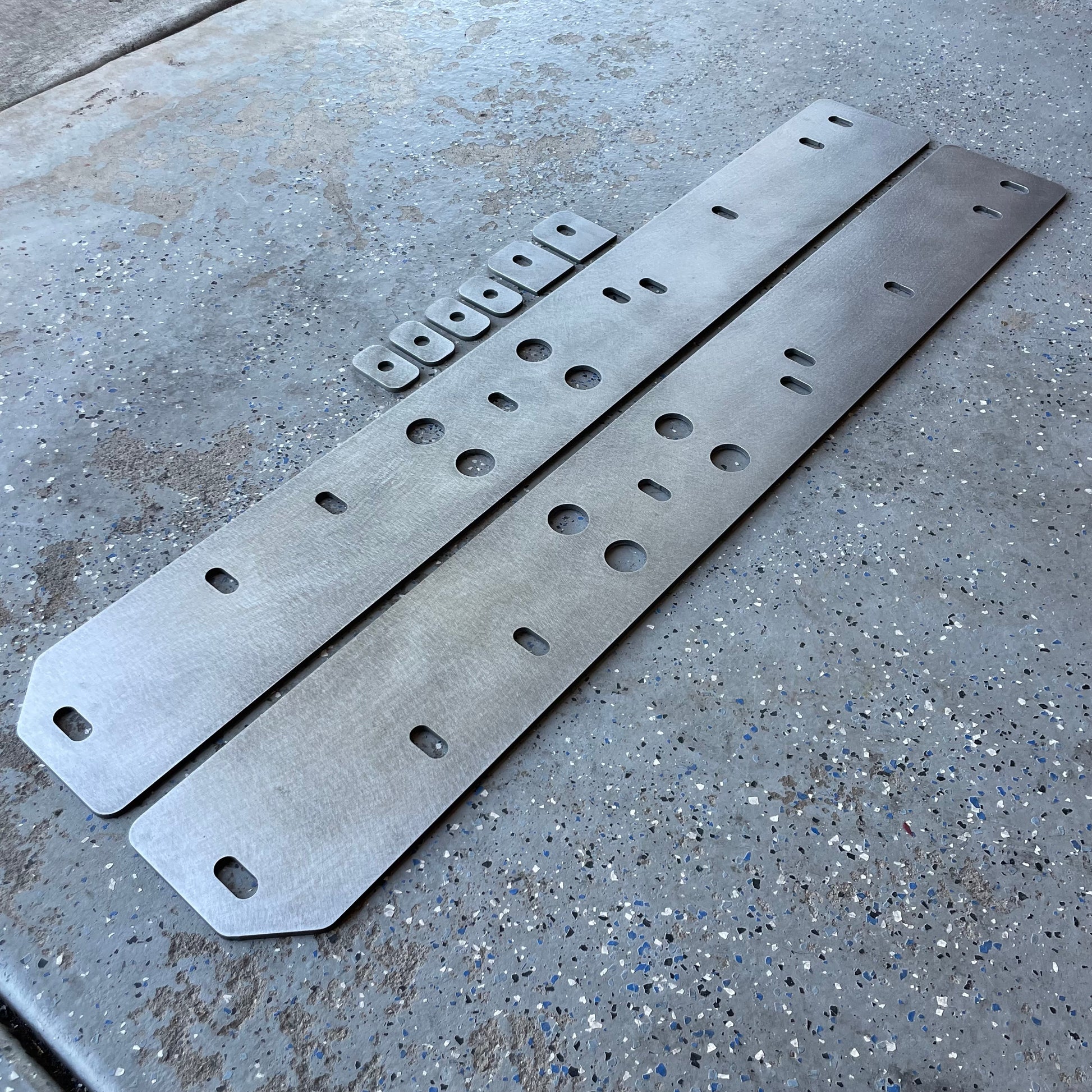

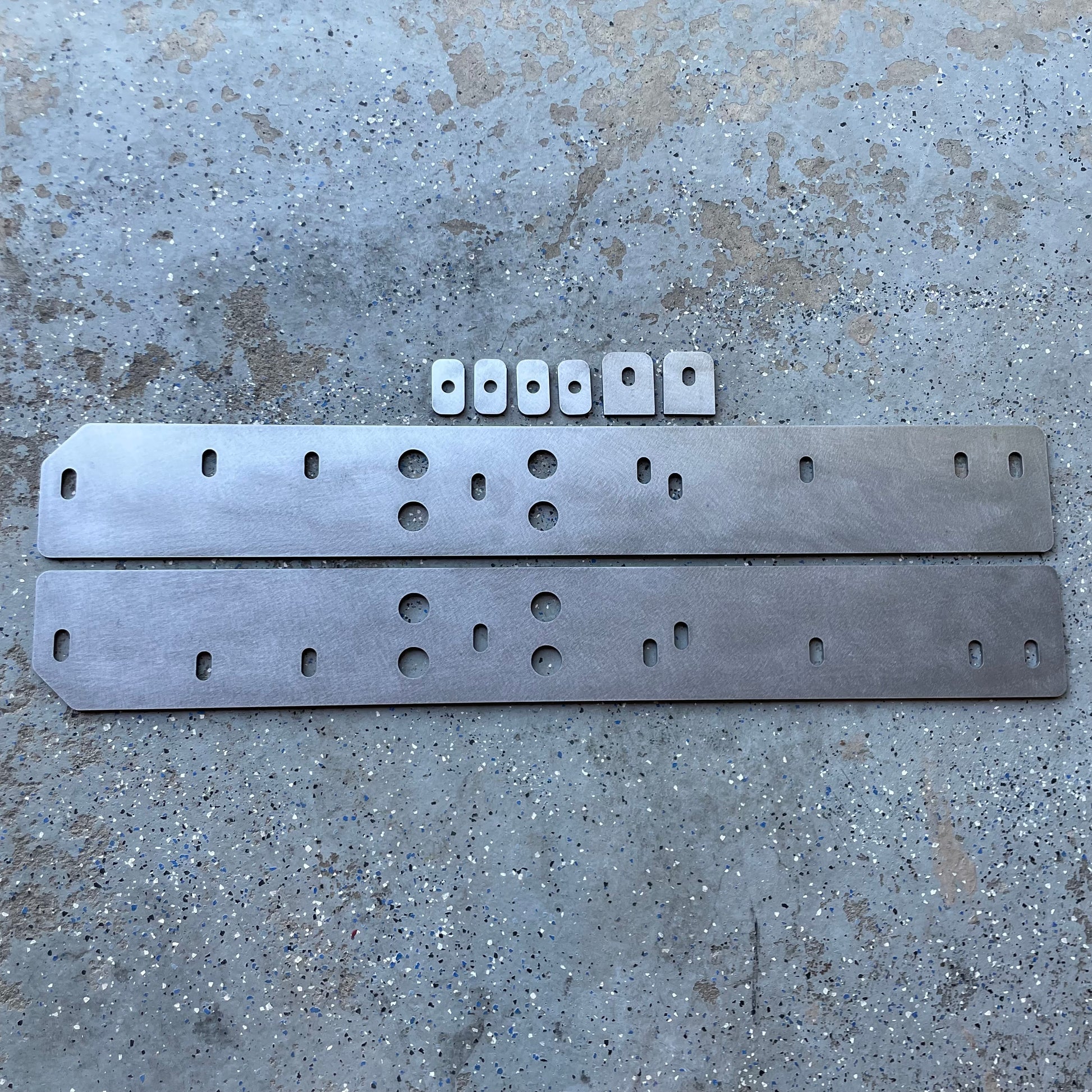

Fabricate your own set of fully bolt on rock sliders with this frame mount kit! We did all the hard work for you and CNC cut from .188” P&O plate the factory bolt hole locations. Threaded frame locations accept 10mx1.25 hardware. This kit is designed to provide a strong foundation to mount your rock sliders without skipping corners, while maintaining affordable shipping rates

Kit includes driver and passenger side mounts

2 additional plates bolt into factory locations on the bottom of the frame to make these mounts rock solid

(4) Rectangular nut plates

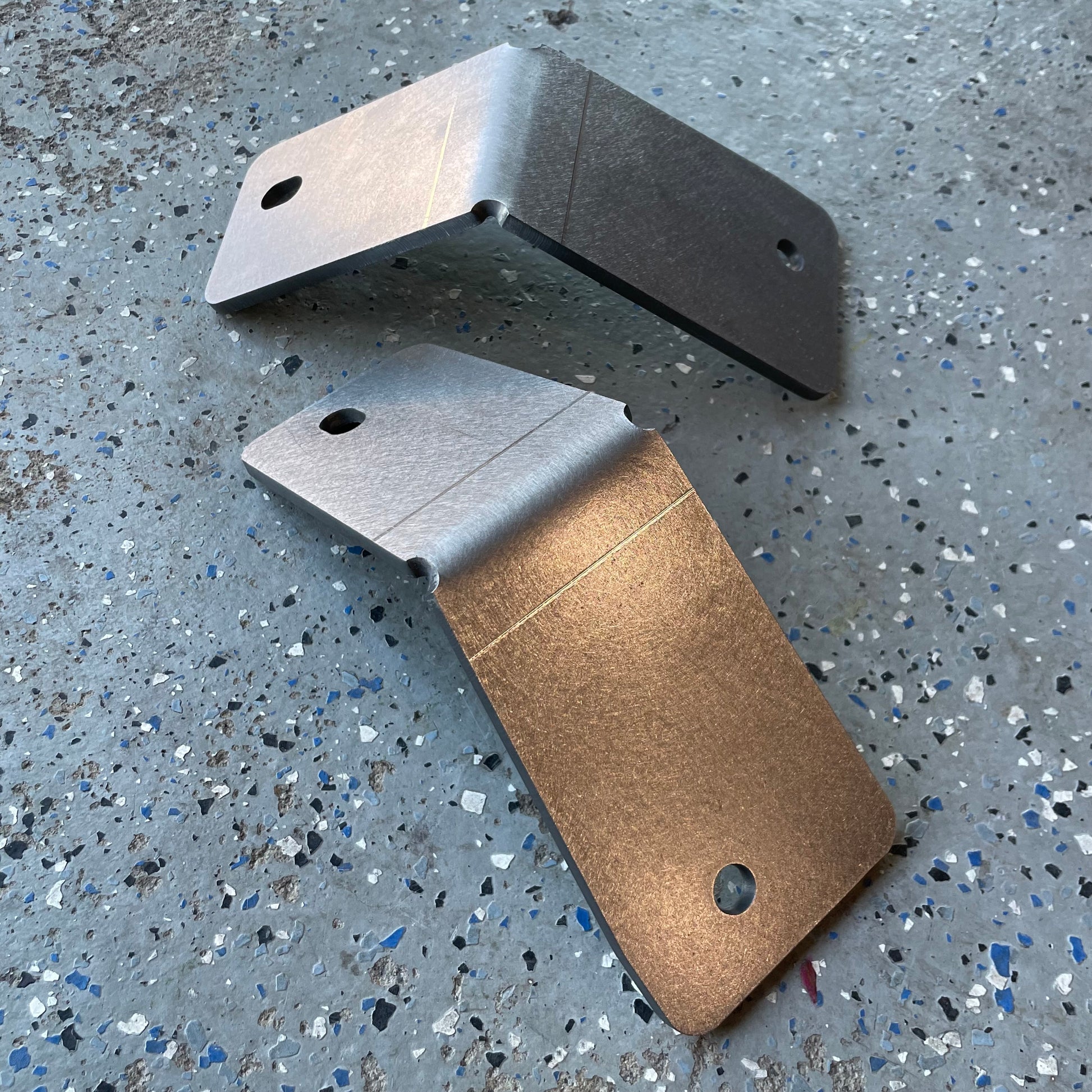

Optional driver and passenger formed mounting plates for the front vehicle crossmember

*Approximate weight of the full kit is 22 lbs.

*Hardware not included

Frame plates include slotted holes and adjustment for optimal fit up and welding of lower tabs and outer frame plates. We recommend fitting and tacking the outer and lower plates with hardware installed. Rock sliders main body and legs should be fully welded before welding to the frame mounts to prevent any additional warping or movement of the frame plate locations. We like to weld 50% of the leg/plate fillets before removing the entire assembly and completing the welding.
