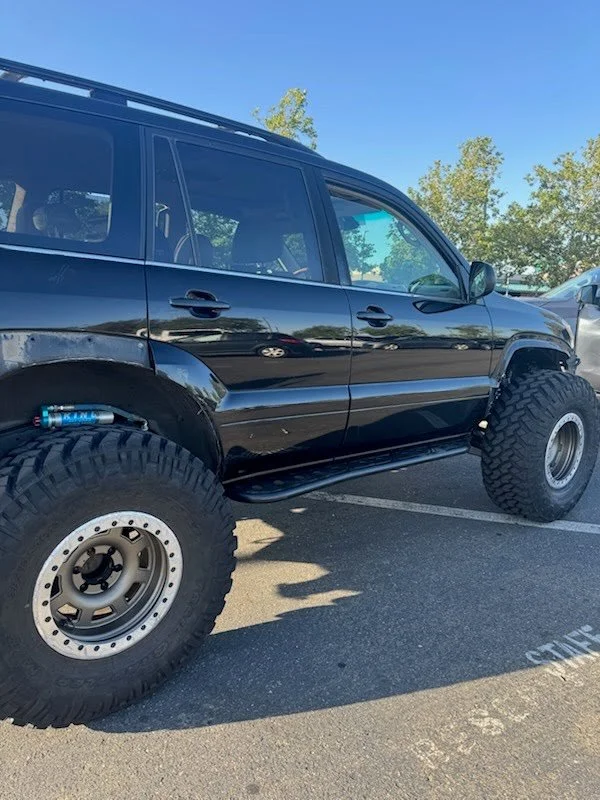

2003-2009 Lexus GX470 Bolt On Rock Sliders With Kickout
Elevate Metalcraft GX470 Rock sliders are made from .120” wall DOM or HREW tubing. (DOM is recommended for heavy off-roading due to the 40% higher yield strength over HREW.)
Feature a rear kick out for added body protection and pivoting around obstacles
These were designed to be rock solid by bolting into both the outer and lower frame sides
Built with a 0 degree angle the sliders sit .75” below the body seam for high ground clearance
Frame mounting plates are made from .188” thick steel plate
These are 100% bolt on to factory mounting locations with included hardware. No drilling is required
Mounting plates provide access holes for wire fishing additional bolts through the frame, for a extremely solid fit that can withstand off-road use. Additional 1/2” grade 8 hardware is installed all the way through the frame for additional piece of mind
For local pickup installation is optional for 120$ (1.5 hours)
***NOT compatible with KDSS. System can be removed for proper fitment***
*Shipping is NOT AVAILABLE for powder coating or spray painted rock sliders
Sliders are built to order with a 2-3 week lead time
Powder coating available with an additional 2 week lead time to completion
